200W High Output Devi Heating Mats - DTIF-200
Key Features of the 200W High Output Devi Underfloor Heating Mats - DTIF-200
| 20 year guarantee | Lead free |
| Flame retarded | Fully screened cable |
| Open self-adhesive mesh design | Excellent value for money |
| 3.5mm mat thickness | Premium well trusted brand |
The high output DEVI underfloor heating mats have been created for a range of installations that require a lot of heat such as conservatories, bathrooms and utility rooms. Installing a DEVImat DTIF-200 has been made simple as they are ready to roll onto the floor as soon as they come out of the box.

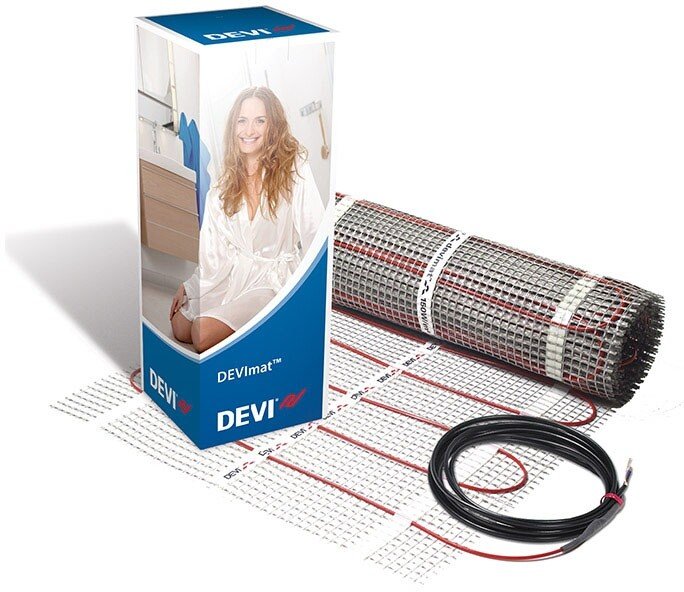

The mat has been created for easy installation and features a self adhesive open mesh, which has a thin heating cable attached. The mat is laid onto the floor, then covered by a flexible tile adhesive which is used to fix the tiles to the floor. We have a range of mat sizes from 1-12 m2 and each mat is approximately 0.5m wide. For larger sized rooms, multiple mats can be used.
The mat has a twin-core heating cable with a solid aluminium sleeve for added safety. The total thickness of mat and cable is only 3.5mm. Termination of the mat to the thermostat is achieved using a single 2-core cable moulded onto the mat during manufacture.
Typical application areas
- Consevatories
- Utility rooms
- Where the heating element is installed close to the floor surface.
- Tiled, vinyl or carpets
We also have heated mats for timber based floors and concrete based floors.
Related articles
List of DEVI Underfloor Heating Mat Resistances
May 12
Concrete Based Floors Single conductor mat. Coverage m2 Normal Minimum -4% Maximum +9% 1.0m 705.00 676.80 768.50 2.0m 353.00 338.90 384.80 3.0m 235.00 225.60 256.20 4.0m 176.00 169.00 191.80 5.0m 141.00 135.40 153.70 6.0m 118.00 113.30 128.60 7.0m 101.00 96.96 110.10 8.0m 88.20 ...
Introduction to DEVI Matting Underfloor Heating
Feb 4
The DEVImat DTIF is a self adhesive mesh, with ultra thin cable pre-attached. It comes in a full range of sizes, from 0.5m-12m and are available in both 100W and 150W per m2 for installation onto both concrete and timber floors. The mat is simply rolled out, cut and turned to fit the available free floor area and the chosen floor covering is then laid. As the cable is a twin conductor, there is no second tail to return to the thermostat, saving on installation time and cost. The system is ...
How To Install DEVI Matting Underfloor Heating Guide
Sep 11
Follow the step by step instructions below to install your DEVImat system. Example Instruction Step 1 Measure the room and draw a sketch to help you calculate which DEVI package you will need. Then sketch in the position of the DEVImat heating cable mat. Note Choose the correct DEVImat and install on the recommended construction. Step 2 Mark the positioning of the toilet before you remove it. This helps yo...
How to Choose your DEVI Matting Underfloor Heating
Jul 21
Start by measuring the free surface area, and make a sketch of the room similar to the one pictured on the right. Choose the closest size of DEVImat (always rounding down to the nearest size). Step By Step Guide Step one Select the type of DEVImat you require. For timber based floors use 100 Watts per m2, for concrete based floors use 150 Watts per m2. If your floor consists of two types of construction, e.g. one half has a timber based floor and one half has a concrete based floo...
Typical Wiring for DEVI Matting Electrical Connections
Jan 15
Typical wiring layout for connection of DEVImat to 540/550 DEVIreg controller.
Example DEVI Matting Underfloor Heating Floor Constructions
Jan 3
Examples of DEVImat installation under tiles on a concrete floor. Examples of DEVImat installation under parquet/wood/vinyl on a concrete floor. Examples of DEVImat installation under tiles on a timber floor.
